Fits 2005 - 2012 Dodge/RAM 2500/3500
Crew Cab Long Bed
Important Note: This tank won't fit trucks with aftermarket drivelines.

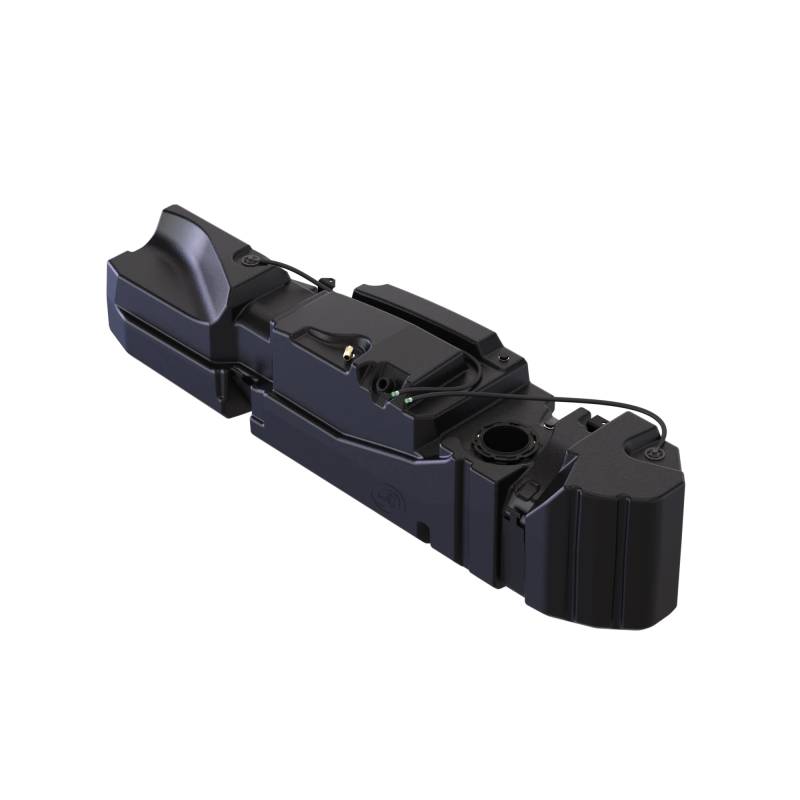

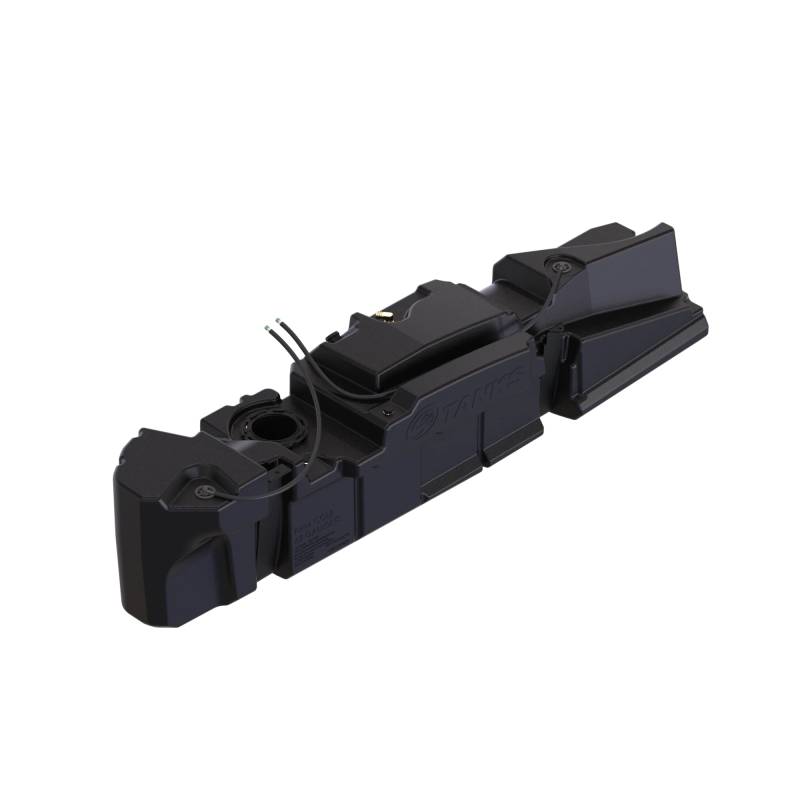

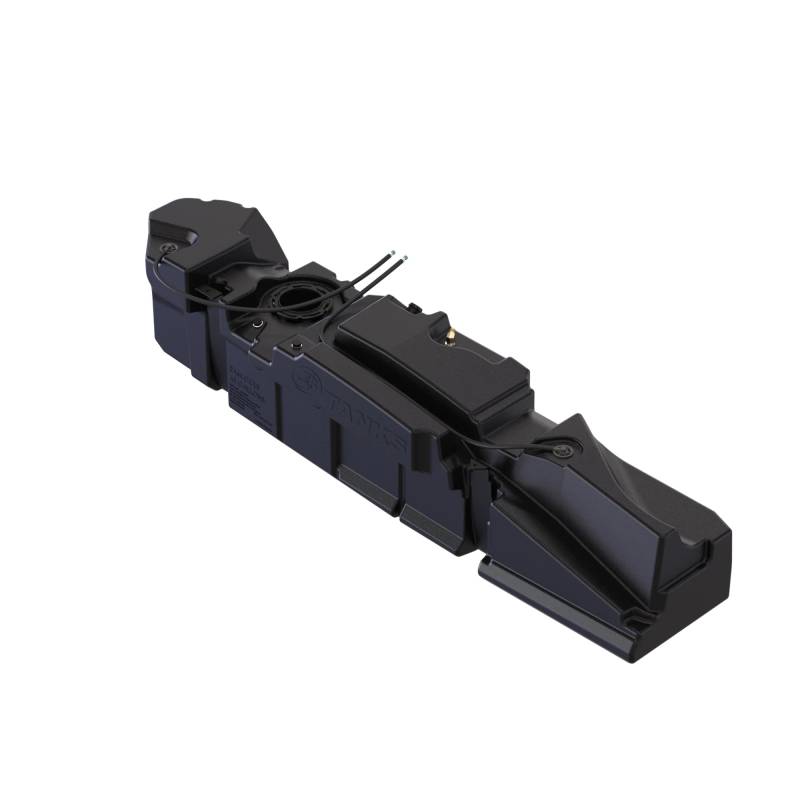

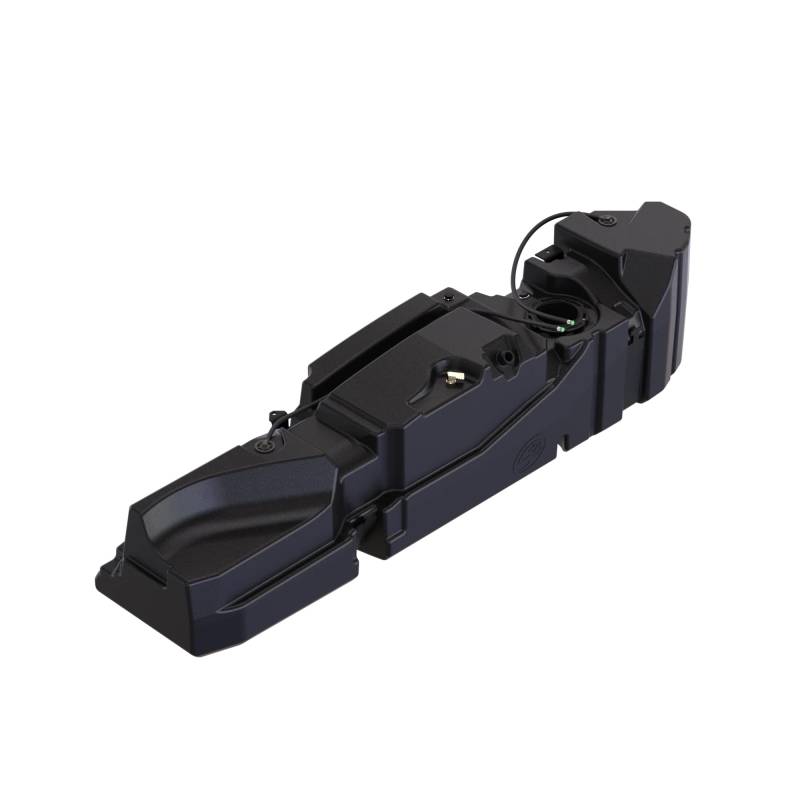

Double the usable fuel capacity of your long-bed Cummins with the S&B Tanks 60-Gallon Replacement Fuel Tank, part number 10-1018. Designed specifically for 2005–2012 Dodge/Ram 2500 and 3500 Crew Cab Long Bed trucks with the 5.9L or 6.7L Cummins diesel, this high-capacity tank replaces the factory 31-gallon tank with approximately 60 gallons—adding roughly 29 gallons for substantially fewer fuel stops on towing trips, long hauls, remote work routes, and overland travel. S&B states this capacity is also 5 gallons greater than comparable replacement tanks.
Vehicle fitment: 2005–2012 Dodge/Ram 2500 and 3500 Cummins diesel Crew Cab Long Bed applications.
60-gallon capacity: Approximately 29 gallons more capacity than the OEM 31-gallon fuel tank, helping extend the distance between fill-ups.
Direct-replacement installation: No cutting, drilling, or permanent chassis modifications are required for installation.

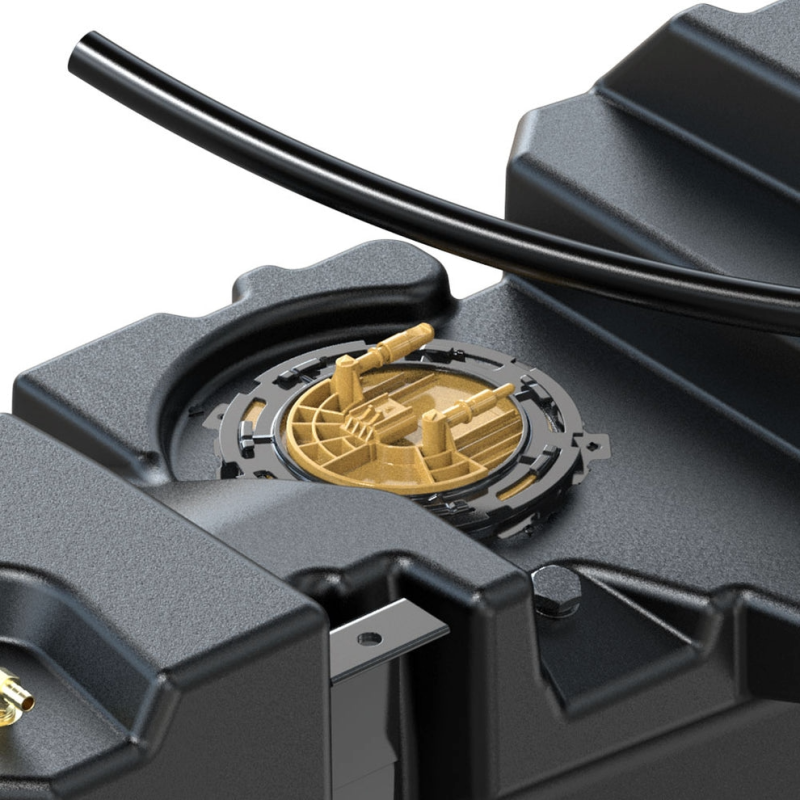

OEM sending-unit retention: Reuses the truck’s factory fuel sending unit, fuel-level components, feed/return connections, and electrical connector.

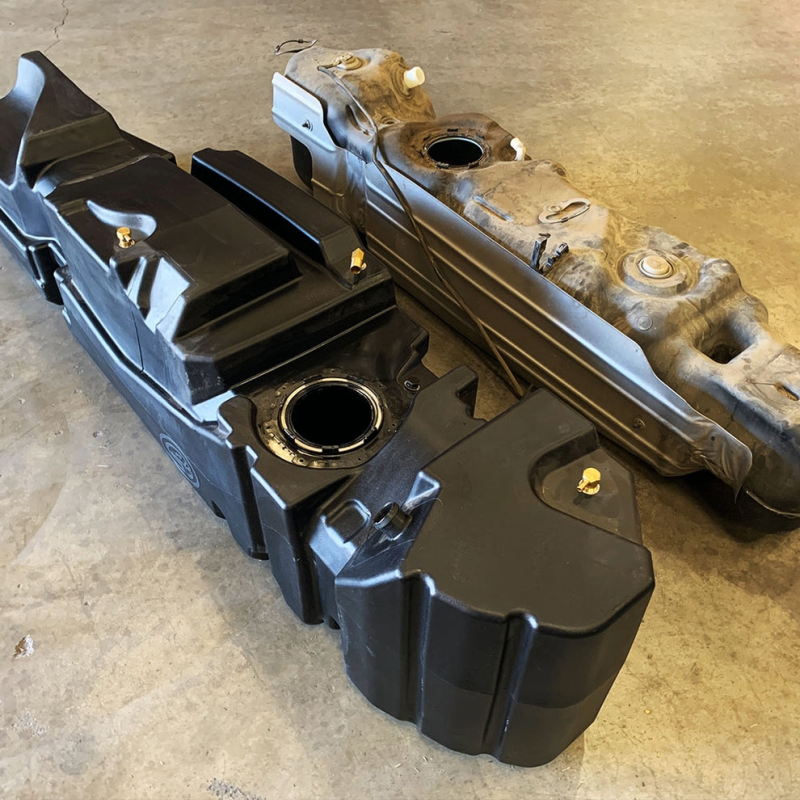

Cross-linked polyethylene construction: The tank is molded from corrosion-resistant, impact-resistant cross-linked polyethylene rather than steel, helping eliminate rust concerns associated with metal tanks.
Installation hardware included: Includes the components needed to install the tank, including an S&B O-ring and locking ring; factory fill and vent hoses are transferred during installation.
Designed for normal fuel stations: The tank is engineered to fill at standard diesel fuel stations.
S&B lifetime warranty: Backed by S&B’s lifetime warranty, subject to the manufacturer’s warranty terms and exclusions.
The S&B 10-1018 is an excellent fuel-capacity upgrade for Ram owners who tow, travel long distances, work in rural areas, or simply want to spend less time pulling into fuel stations. It is a true replacement tank—not an in-bed auxiliary tank—so it preserves bed space for cargo, fifth-wheel equipment, tools, or recreation gear.

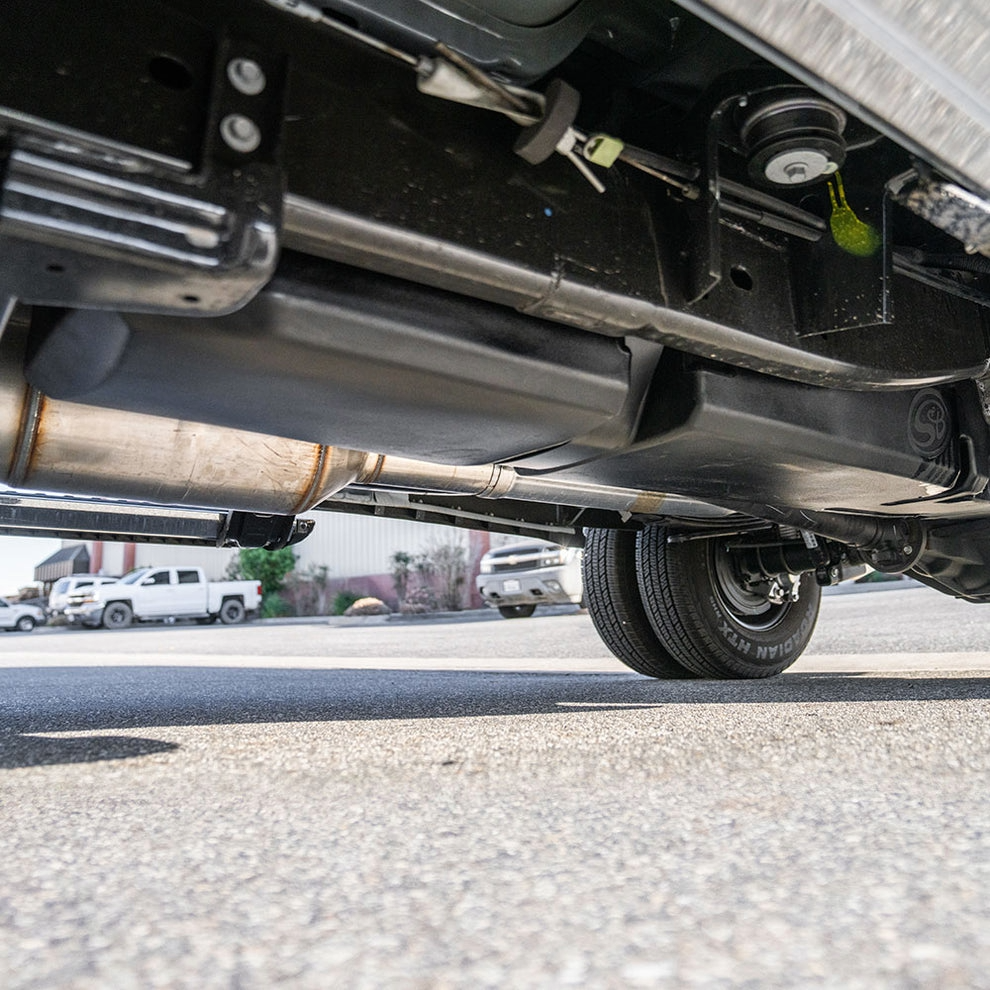

Installation requires transferring the OEM sending unit into the S&B tank. S&B’s instructions call for supporting the tank, disconnecting the OEM feed line, return line, and electrical connection, transferring the sending unit with the supplied sealing components, routing the fill and vent lines correctly, and checking the completed installation for leaks. Proper strap torque and driveshaft clearance must be verified before returning the vehicle to service.
Fits 2005–2012 Dodge/Ram 2500/3500 Cummins diesel Crew Cab Long Bed trucks.
Not intended for short-bed, regular-cab, or non-Cummins applications.
Professional installation is recommended due to fuel-system connections, tank weight, and the need to transfer the OE sending unit.
Install with the factory tank empty or nearly empty whenever possible.
Confirm cab configuration, bed length, and vehicle application before ordering.
This replacement tank does not normally create diagnostic trouble codes when installed correctly because it retains the OEM sending unit and electrical connection. However, an incorrect sender installation, unseated O-ring, damaged connector, pinched vent hose, or improperly secured fuel line can cause fuel-system concerns such as:
Inaccurate, intermittent, or inoperative fuel-level gauge readings.
Fuel odor, visible leaks, or slow filling caused by vent/filler-hose routing issues.
Extended cranking, fuel-delivery issues, or a no-start condition if fuel connections are not fully locked.
Potential fuel-level sensor-related codes, such as P0461, P0462, P0463, or P0464, if the sender circuit or float assembly is damaged or connected improperly.
Note: The truck’s Distance-to-Empty calculation may not accurately reflect the larger tank capacity, depending on the OE instrument-cluster calibration. Verify fuel level using the gauge and odometer rather than relying solely on Distance to Empty.
Will this fit a short-bed Ram?
No. This 60-gallon S&B tank is designed for the specified 2005–2012 Crew Cab Long Bed Cummins application.
Does it require cutting or drilling?
No. S&B identifies the tank as a direct replacement that installs without cutting, drilling, or special modifications.
Does the factory fuel gauge still work?
Yes. The tank is designed to reuse the OEM fuel sending unit and factory electrical connection. Correct sender transfer and installation are essential for accurate operation.
Is this an auxiliary tank?
No. It replaces the factory midship fuel tank and uses the original fuel-system hardware.
What warranty applies?
S&B lists this tank with a lifetime warranty. Warranty coverage is subject to S&B’s current terms, exclusions, and installation requirements.
