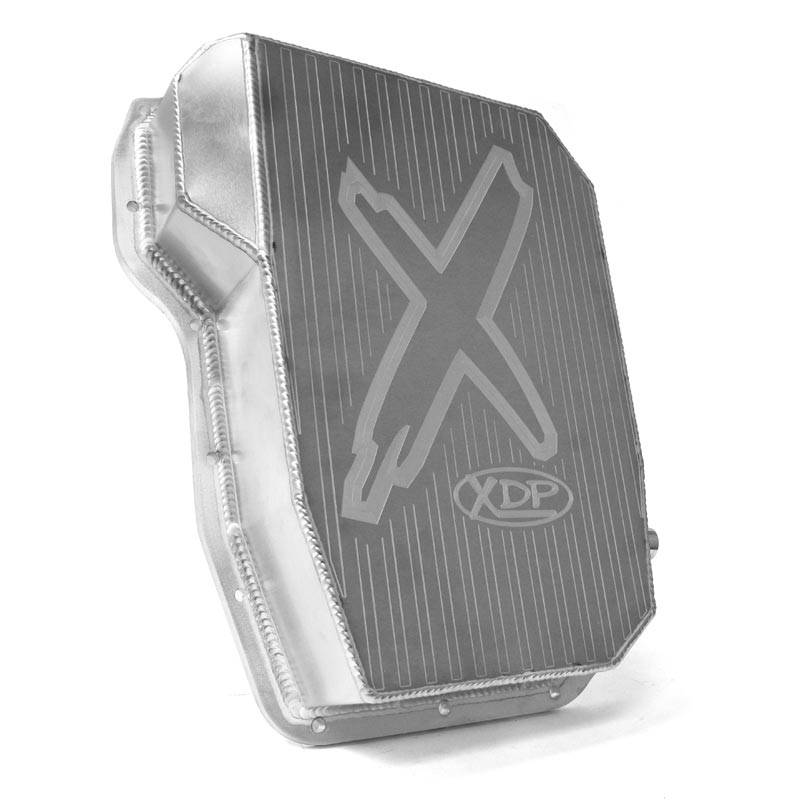

Xtra Deep Aluminum Transmission Pan (68RFE) XD452 XDP

Get authentic XDP Xtreme Diesel Performance parts at NorCal Diesel Performance — expert tech support, fast shipping, and freight quotes available for oversized packages.

Add 2 quarts of extra fluid capacity and a custom look to the 68RFE transmission in your Cummins powered Ram with the XDP X-TRA Deep Aluminum Transmission Pan (68RFE) XD452. The XDP X-TRA Deep Transmission Pan is built with an aluminum sheet metal construction to give you a race-inspired look that is sleek, lightweight, and durable.

Each pan features a fully-welded construction and a 3/8 inch thick mounting flange for added strength and resistance to warping. The CNC engraved bottom provides you with enhanced looks and styling while the direct-fit design allows this pan to easily install using any OE-style gasket.

As an upgrade over the factory pan, the X-TRA Deep Pan is equipped with a drain plug and an 1/8 inch NPT port access to install a transmission temperature sender. This pan comes ready to install with new stainless steel hardware and is backed by the XDP 1-year unlimited mileage warranty.

Features:

• 1/8 inch NPT Temperature Port
• Deep Sump For Added Capacity
• Fabricated Aluminum Construction
• 2 Quarts Added Capacity Over Stock
• Includes Stainless Steel Mounting Hardware

Application Notes:

• Does not include a gasket or filter.
• Fits 2007.5-2022 Cummins 6.7L equipped with 68RFE Transmission
• In most cases the factory transmission pan was sealed with RTV Silicone and can be reinstalled the same way (not included).
• The XDP 68RFE Billet Filter Clamp XD478 is required on applications running a stock valve body with a deep transmission pan.
